Trek Domane AL 4 Disc
Wheel Size: 700c
Details
Domane AL 4 Disc combines the smooth, comfortable qualities of an advanced alloy frame with the performance of higher-quality parts. It features an upgraded drivetrain and crisp hydraulic disc brakes for a fast road bike perfect for competitive group rides and even races.
- A light, comfortable frame and quality parts make it an awesome platform for long, fast group rides
- The unique IsoSpeed Carbon fork, which swoops forward toward the dropouts, absorbs vibrations from the road so your arms won't fatigue as quickly
- Hydraulic disc brakes give you more precise and consistent stopping power in any conditions
- Bigger tire clearance lets you run wider tires for more traction and stability on rail trails and other light gravel roads
Specs
| Hubs |
Formula RX-512 alloy, 6-bolt, 100x12mm thru axle |
| Rims |
Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve |
| Stem |
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length |
| Chain |
Shimano Tiagra HG54, 10 speed |
| Frame |
100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle |
| Tires |
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c |
| Brakes |
Shimano Tiagra hydraulic disc, flat mount |
| Rotors |
Shimano RT66, 6-bolt, 160mm |
| Saddle |
Bontrager Verse Comp, steel rails, 155mm width |
| Spokes |
14g stainless steel, black |
| Headset |
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Crankset |
Shimano Tiagra 4700, 50/34, 170mm length |
| Seatpost |
Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length |
| Handlebars |
Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width |
| Bottom Bracket |
Shimano RS500, 68mm, threaded external |
| Rear Derailleur |
Shimano Tiagra 4700, long cage, 34T max cog |
| Front Derailleur |
Shimano Tiagra 4700, 31.8mm clamp |
| Cassette/Freewheel |
Shimano HG500, 11-32, 10 speed |
* Subject to change without notice.
Part Numbers
| Option |
UPC |
MPN |
Store SKU |
| Trek Black / 56cm / 700c |
601479092789 |
5274869 |
DOM20662238K |

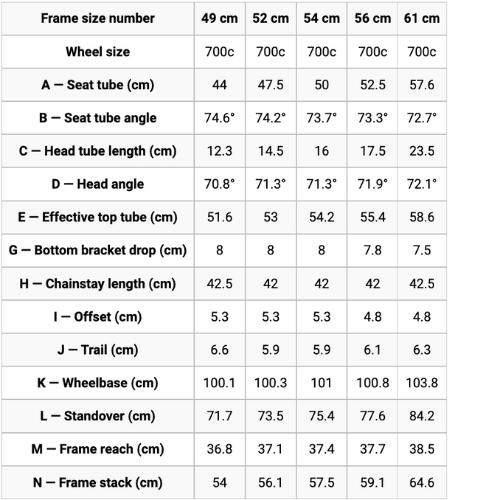

Geometry
Sizing
| Frame Size |
Rider Height |
Inseam |
| 44 |
4'11.1" - 5'0.2" |
28.0" - 28.7" |
| 49 |
5'1.4" - 5'3.8" |
29.1" - 30.3" |
| 52 |
5'4.2" - 5'6.1" |
29.9" - 31.1" |
| 54 |
5'6.1" - 5'8.5" |
30.7" - 32.3" |
| 56 |
5'8.5" - 5'10.9" |
31.9" - 33.5" |
| 58 |
5'10.9" - 6'0.8" |
33.1" - 34.3" |
| 61 |
6'0.8" - 6'3.2" |
33.9" - 35.4" |
Due to supply-chain issues, Specs are subject to change without notice.
